Adapter 9800.00.00.001
Material: steel 20GL GOST 977-88
Overall dimensions: 324х248х160 mm
Part weight: 31,2 kg.
Centering beam 2150.00.009-2
Material: steel 20GL GOST 22703-2012
Overall dimensions: 432x126x118 mm
Part weight: 10,8 kg.
Lift roller 2150.10.014-0
Material: steel 20GL GOST 22703-2012
Overall dimensions: 174х171х116 mm
Part weight: 3,4 kg.
Holder 2114.02.581-00
Material: steel 20L GOST 977-88
Overall dimensions: 177х135х90 mm
Part weight: 7,4 kg.
Blind spot holder 2128-07.10.002
Material: steel 20L GOST 977-88
Overall dimensions: 265x115x86 mm
Part weight: 3,6 kg.
Blind spot holder 26.B.503.01.00.004
Material: steel 20L GOST 977-88
Overall dimensions: 230х110х98 mm
Part weight: 3,3 kg.

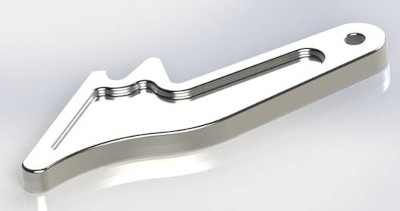

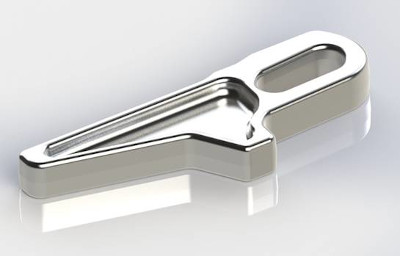

Latch hook 296.45.102-01
Material: steel 20L GOST 977-88
Overall dimensions: 371х155х25 mm
Part weight: 4,8 kg.
Lock holder 2150.10.003-0
Material: steel 20GL GOST 22703-2012
Overall dimensions: 250х185х75 mm
Part weight: 4,6 kg.
Lock 2150.10.002-0
Material: steel 20GL GOST 22703-2012
Overall dimensions: 345х340х48 mm
Part weight: 12,86 kg.
Wedge 2114.01.113-00
Material: steel 20L GOST 977-88
Overall dimensions: 360х130х40 mm
Part weight: 5,3 kg.
Wedge 9800.03.00.001
Material: VCH 120 TU9800.03.00.001
Overall dimensions: 212х190х220 mm
Part weight: 13,15 kg.
Friction wedge 2128-07.50.00.005
Material: steel 20L GOST 977-88
Overall dimensions: 212х186х190 mm
Part weight: 16,0 kg.
Beam 287.35.101-01
Material: steel 30GSL-B GOST 22253-76
Overall dimensions: 490х326х112 mm
Part weight: 19,9 kg.
Bracket 2114.02.176-00
Material: steel 20L GOST 977-88
Overall dimensions: 510х231х120 mm
Part weight: 14,1 kg.
Upper bracket 2150.10.016-0
Material: steel 20GL GOST 22703-2012
Overall dimensions: 157х92х106 mm
Part weight: 3,5 kg.
Lower bracket 2150.10.015-0
Material: steel 20GL GOST 22703-2012
Overall dimensions: 148х86х57 mm
Part weight: 1,1 kg.
Right bracket 296.45.178-01
Material: steel 20GL GOST 977-88
Overall dimensions: 340х330х82 mm
Part weight: 8,45 kg.
Left bracket 296.45.177-01
Material: steel 20GL GOST 977-88
Overall dimensions: 340х330х82 mm
Part weight: 8,45 kg.

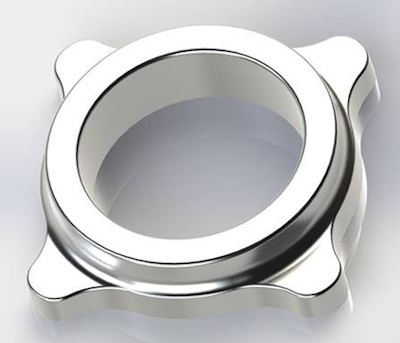

Fixing cover 2128-07.40.00.002
Material: steel 20L GOST 977-88
Overall dimensions: 372х372х64,5 mm
Part weight: 16,14 kg.
Transversal side hinge 2114.01.114-00
Material: steel 20L GOST 977-88
Overall dimensions: 350х144х80 mm
Part weight: 5,9 kg.
Longitudinal side hinge 2114.01.115-00
Material: steel 20L GOST 977-88
Overall dimensions: 622х144х85 mm
Part weight: 10,3 kg.
Plate 2116.03.102-00
Material: steel 20GL GOST 977-88
Overall dimensions: 285х175х144 mm
Part weight: 11,9 kg.
Base plate 2116.03.101-00
Material: steel 20GL GOST 977-88
Overall dimensions: 268х175х50 mm
Part weight: 5,3 kg.
Supporting plate 287.35.102-00
Material: steel 30GSL-B GOST 22253-76
Overall dimensions: 290х140х146 mm
Part weight: 7,4 kg.
Lock lift 2150.10.004-0
Material: steel 20GL GOST 22703-2012
Overall dimensions: 157х89х50 mm
Part weight: 1,9 kg.

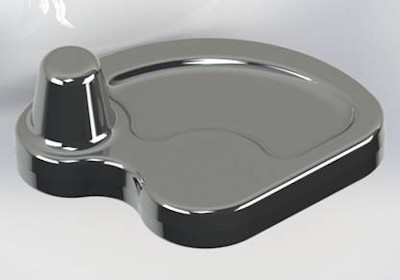

Right sector 296.45.182-00
Material: steel 20L GOST 977-88
Overall dimensions: 152х121х57 mm
Part weight: 1,9 kg.

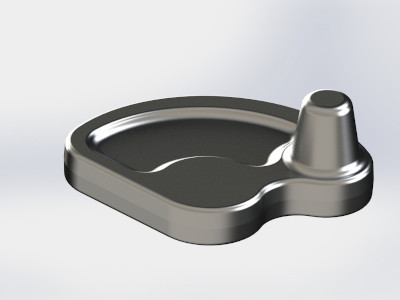

Left sector 296.45.183-00
Material: steel 20L GOST 977-88
Overall dimensions: 152х121х57 mm
Part weight: 1,9 kg.
Worm sector 066.40.354-04
Material: steel 20L GOST 977-88
Overall dimensions: 321х231х62 mm
Part weight: 11,9 kg.
Special bracket 2114.02.262-00
Material: steel 20L GOST 977-88
Overall dimensions: 210х135х222 mm
Part weight: 11,6 kg.
Slider 5L 296.02.123-00
Material: steel 20L GOST 977-88
Overall dimensions: 400х280х154 mm
Part weight: 17,8 kg.

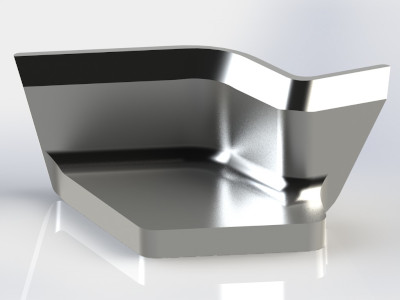

left\right corner 296.02.124-00/125-00
Material: steel 20L GOST 977-88
Overall dimensions: 230х126х230 mm
Part weight: 8,8 kg.
Eye 2114.05.129-00
Material: steel 20L GOST 977-88
Overall dimensions: 230х100х50 mm
Part weight: 3,43 kg.
Swivel shoe 2145.60.110.001
Material: steel 20L GOST 977-88
Overall dimensions: 490х185х85 mm
Part weight: 14,0 kg.
Shoe 1-2 GOST P 34075-2017 2128-07.60.00.309
Material: steel 20L GOST 977-88
Overall dimensions: 340х80х210 mm
Part weight: 7,6 kg.
