Tanks, model: 15-9872
model advantages..
Tanks, model: 15-2132
model advantages..
Tanks, model: 15-2132П
model advantages..
Tanks, model: 15-2148
model advantages..
Tanks, model: 15-289-03
model advantages..
Specifications
boiler volume, m383,9
load capacity, tons52,0
empty weight minimum, tons35,8
empty weight maximum, tons37,5
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)220,5 (22,5)
wheel base, mm37 800
length over coupler pulling faces, mm12 020
car width (maximum), mm3 260
car height (maximum), mm5 250
internal boiler diameter, mm3 200
external boiler length, mm11 000
boiler operating pressure, MPa (kgf/cm2)2,00 (20,0)
design boiler pressure, MPa (kgf/cm2)2,11 (21,1)
GOST dimensions 9238-20131-T
design speed, km/h120
trolley model (type 2 according to GOST 9246-2013)18-2128
Specifications
boiler volume, m385,5
load capacity, tons66,0
empty weight minimum, tons27,0
empty weight maximum, tons28,0
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)230,5 (23,5)
wheel base, mm7 800
length over coupler pulling faces, mm12 020
car width (maximum), mm3 345
car height (maximum), mm4 830
internal boiler diameter, mm3 200
external boiler length, mm10 800
design boiler pressure, MPa (kgf/cm2)0,38 (3,8)
GOST dimensions 9238-20131-T
design speed, km/h120
trolley model (type 2 according to GOST 9246-2013)18-2128
Specifications
boiler volume, m385,5
load capacity, tons66,0
empty weight minimum, tons27,0
empty weight maximum, tons28,0
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)230,5 (23,5)
wheel base, mm7 800
length over coupler pulling faces, mm12 020
car width (maximum), mm3 345,5
car height (maximum), mm4 830
internal boiler diameter, mm3 200
external boiler length, mm10 800
design boiler pressure, MPa (kgf/cm2)0,38 (3,8)
GOST dimensions 9238-20131-T
design speed, km/h120
trolley model (type 2 according to GOST 9246-2013)18-2128
Specifications
boiler volume, m386,5
load capacity (design), tons, not more than50,14
empty weight minimum, tons36,6
empty weight maximum, tons39,0
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)218,63 (22,29)
wheel base, mm7 800
length over coupler pulling faces, mm12 020
car width (maximum), mm3 289
car height (maximum), mm5 090
internal boiler diameter, mm3 220
external boiler length, mm11 200
boiler operating pressure, MPa (kgf/cm2)2,14 (21,8)
design boiler pressure, MPa (kgf/cm2)2,14 (21,8)
safety valve activation pressure, MPa (kgf/cm2)2,2 (22,4)
GOST dimensions 9238-20131-T
design speed, km/h120
trolley model (type 2 according to GOST 9246-2013)18-2128
Specifications
full boiler volume, m372,2
useful boiler volume, m361,0
load capacity, tons61
empty weight minimum, tons31,0
empty weight maximum, tons33,0
number of axles, pcs.4
wheel base, mm7 800
length over coupler pulling faces, mm12 020
car width (maximum), mm12 020
car height (maximum), mm5 070
internal boiler diameter, mm3 000
external boiler length with thermal insulation, mm11 200
design boiler pressure, MPa (kgf/cm2)11 200
coil pressure, MPa (kgf/cm2), not more than0,5 (5,0)
coil temperature, oС, not more than100
coil coolanthot water
GOST dimensions 9238-20131-T
design speed, km/h120
trolley model (type 2 according to GOST 9246-2013)18-2128

Tanks

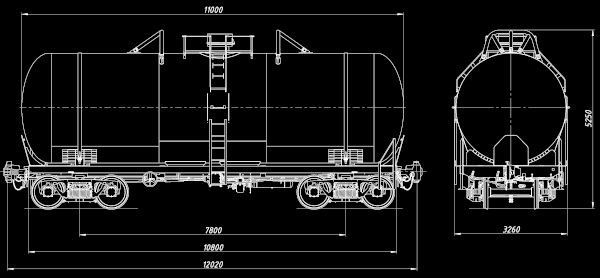

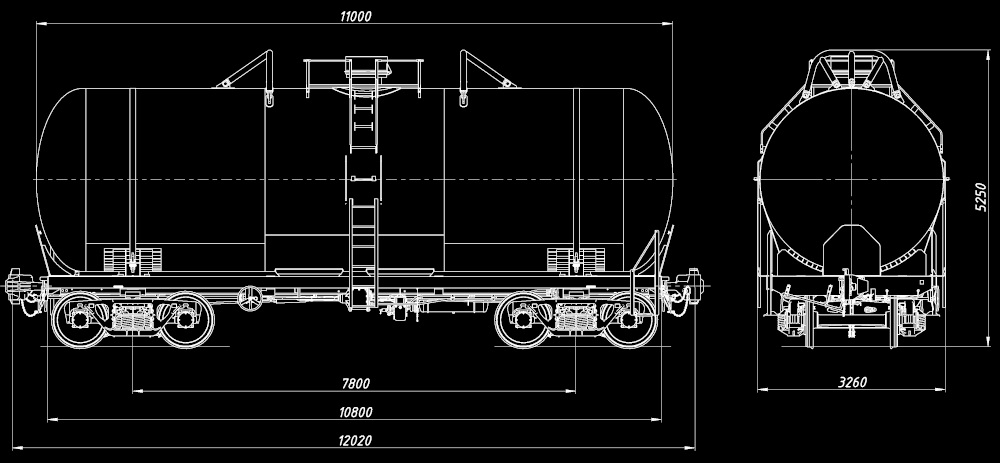

Model: 15 - 9872

схема вагона 15-9872

The tank is designed for transportation of liquefied petroleum gases (propane, butane and mixtures thereof).

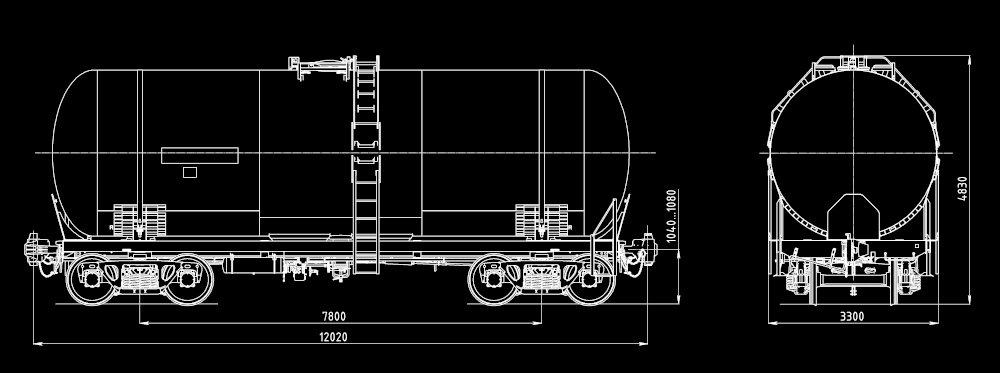

Model: 15 - 2132

схема вагона 15-2132

The tank is designed for transportation of crude oil and petroleum products.

Model: 15 - 2132П

схема вагона 15-2132П

The tank is designed for transportation of vegetable oils subject to further processing.

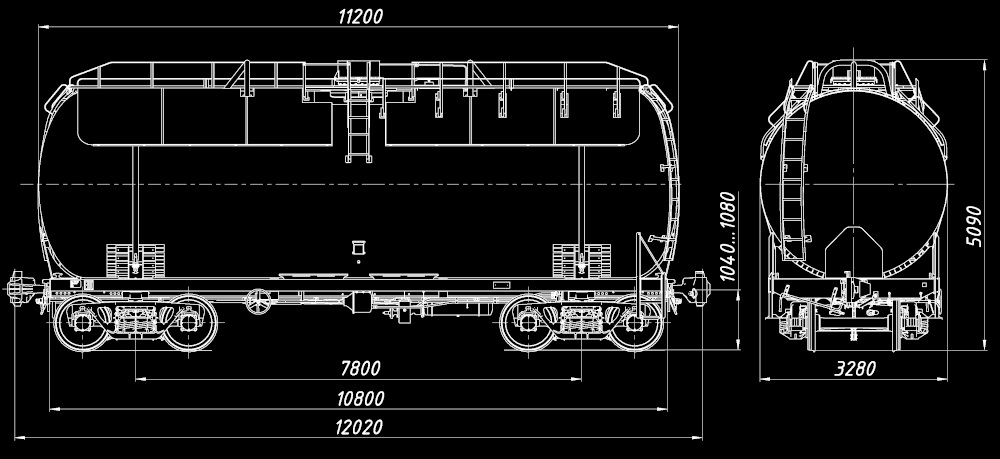

Model: 15 - 2148

схема вагона 15-2148

The tank is designed for transportation of ammonia.

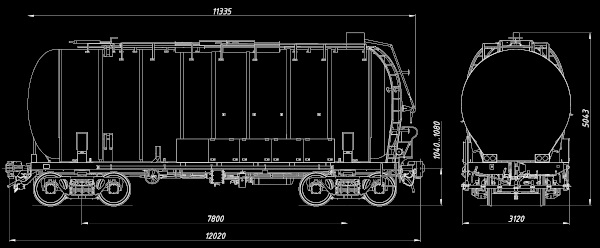

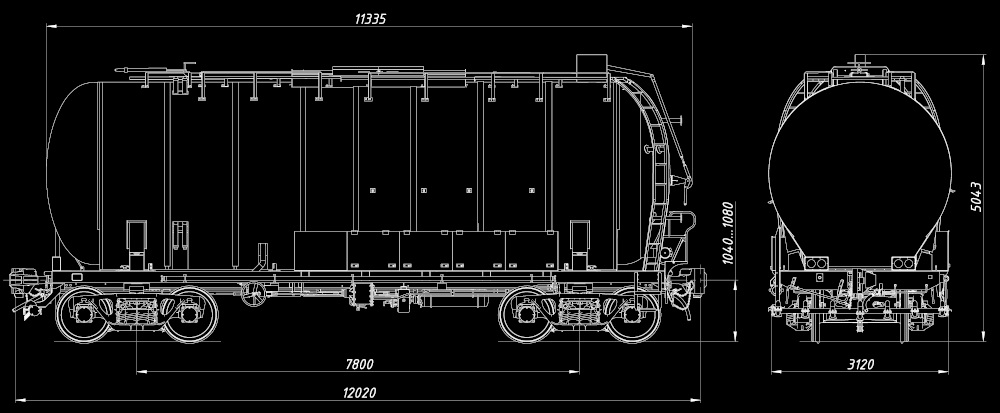

Model: 15-289-03

схема вагона 15-289-03

Water tank car.
The tank is designed for storage and transportation of water by railways of 1,520 mm gauge as part of a fire train.
