| Specifications | |
|---|---|
| load capacity, tons | 72 |
| tare weight, maximum, tons | 22,0 |
| tare weight, minimum, tons | 21,3 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 230,5(23,5) |
| length over coupler pulling faces, mm | 14 620 |
| car frame length, mm | 13 400 |
| wheel base, mm | 9 720 |
| standard sizes of transported containers in accordance with GOST P 53350-2009 | 1ААА, 1АА, 1А, 1АХ-1, 1СС, 1С, 1СХ-2 |
| GOST dimensions 9238-2013 | 0-VM |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Specifications | |
|---|---|
| load capacity, tons | 73 |
| carrying capacity, maximum, tons | 20,6 |
| carrying capacity, minimum, tons | 19,4 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 229,6(23,4) |
| length over coupler pulling faces, mm | 14 620 |
| car frame length, mm | 13 400 |
| wheel base, mm | 9 720 |
| number of fitting stops, pcs. | 16 |
| Standard sizes of transported containers in accordance with GOST P 53350-2009 | 1ЕЕЕ, 1ЕЕ-1, 1АААА, 1АА, 1А, 1АХ-1, 1СС, 1С, 1СХ-2, 1D, 1DX-4 |
| GOST dimensions 9238-2013 | 0-VM |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Specifications | |
|---|---|
| load capacity, tons | 69 |
| Tare weight, not more than, tons | 25,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 230,5(23,5) |
| length over coupler pulling faces, mm | 14 620 |
| car frame length, mm | 13 400 |
| wheel base, mm | 9 720 |
| GOST dimensions 9238-2013 | 1-T |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Specifications | |
|---|---|
| load capacity, tons | 66 |
| tare weight maximum, tons | 27,0 |
| tare weight minimum, tons | 24,6 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 227,85(23,25) |
| length over coupler pulling faces, mm | 14 620 |
| car frame length, mm | 13 400 |
| wheel base, mm | 9 720 |
| GOST dimensions 9238-2013 | 1-T |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Specifications | |
|---|---|
| load capacity, tons | 72 |
| tare weight maximum, tons | 21,3 |
| tare weight minimum, tons | 20,1 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 228,82(23,325) |
| length over coupler pulling faces, mm | 14 620 |
| car frame length, mm | 13 400 |
| wheel base, mm | 9 720 |
| number of fitting stops, pcs. | 8 или 16 |
| standard sizes of transported containers in accordance with GOST P 53350-2009 | 1ААА, 1АА, 1А, 1АХ-1, 1СС, 1С, 1СХ-2, 1D, 1DX-4* |
| GOST dimensions 9238-2013 | 0-VM |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Note * - Containers of standard sizes 1D, 1DX (weight gross 10,16 tons) can be placed on the car when it is equipped with 16 fitting stops upon the customer's request. | |
| Specifications | |
|---|---|
| load capacity, tons | 72 |
| tare weight, tons | 22 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 235,0(23,5) |
| design speed, km/h | 120 |
| GOST dimensions 9238-2013 | 0-VM |
| platform base, mm | 14 720 |
| length over coupler pulling faces, mm | 19 620 |
| length along the end beams of the frame, mm | 18 400 |
| car frame width, mm | 2 870 |
| number of fitting stops, pcs. | 24 |
| number of containers transported, pcs. 1АА,1А,1АХ(макс. масса брутто 30,48т) | 1 |
| number of containers transported, pcs. 1ВВ,1В,1ВХ(макс. масса брутто 25,4т) | 2 |
| number of containers transported, pcs. tank containers 1ВВ,1В,1СС,1С(max. weight gross 30,48т) | 2 |
| number of containers transported, pcs. 1СС,1С,1СХ(max. weight gross 24 tons) | 3 |
| number of containers transported, pcs. 1DD(max. weight gross 12 tons(only throughout Russia)) | 6 |
| number of containers transported, pcs. 1D,1DX(max. weight gross 10,16 tons) | 6 |
| Specifications | |
|---|---|
| load capacity, tons | 71,5 |
| tare weight, tons | 22,5 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 235,0(23,5) |
| design speed, km/h | 120 |
| GOST dimensions 9238-2013 | 1-T |
| база платформы, мм | 14 720 |
| length over coupler pulling faces, mm | 19 620 |
| car frame length, mm | 18 400 |
| car frame width, mm | 2 870 |
| number of containers transported, pcs. 1АА,1А,1АХ(max. weight gross 30,48 tons) | 1 |
| number of containers transported, pcs. 1ВВ,1В,1ВХ(max. weight gross 25,4 tons) | 2 |
| Specifications | |
|---|---|
| load capacity, tons | 69 |
| tare weight, not more than, tons | 25,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 230,3(23,5) |
| length over coupler pulling faces, mm | 26 220 |
| car frame length, mm | 25 000 |
| wheel base, mm | 19 000 |
| standard sizes of transported containers, tank containers, specialized containers, refrigerated containers in accordance with GOST P 53350-2009, GOST P 50697-94, GOST 31314.3-2006 | 1ЕЕЕ, 1ЕЕ-1, 1ААА, 1АА, 1А, 1АХ-2, 1ВВВ, 1ВВ, 1В, 1ВХ-2, 1СС, 1С, 1СХ-4 |
| GOST dimensions 9238-2013 | 1-T |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 120 |
| Specifications | |
|---|---|
| load capacity, tons | 62 |
| tare weight, not more than, tons | 32,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 230,5(23,5) |
| length over coupler pulling faces, mm | 26 220 |
| car frame length, mm | 25 000 |
| wheel base, mm | 19 000 |
| platform frame width, mm | 3 150 |
| loading platform length, maximum, mm | 24 560 |
| GOST dimensions 9238-2013 | 1-T |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Specifications | |
|---|---|
| load capacity, tons | 65 |
| tare weight maximum, tons | 29,0 |
| tare weight minimum, tons | 28,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 230,5(23,5) |
| length over coupler pulling faces, mm | 14 620 |
| car frame length, mm | 13 400 |
| wheel base, mm | 9 720 |
| internal body length (by end stop beams), mm | 12 000 |
| height to the tent top in transport position, mm | 3 865 |
| GOST dimensions 9238-2013 | 1-T |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | тип 2 |
| layout of rolls in the car | longitudinal, one or two rows, along the entire car length |
| Specifications | |
|---|---|
| load capacity, tons | 61 |
| tare weight maximum, tons | 21,0 |
| tare weight minimum, tons | 20,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 201,1 (20,5) |
| length over coupler pulling faces, mm | 14 620 |
| car frame length, mm | 13 400 |
| wheel base, mm | 9 720 |
| standard sizes of transported containers, tank containers, specialized containers, refrigerated containers in accordance with GOST P 53350-2009, GOST P 50697-94 | 1ЕЕЕ, 1ЕЕ, 1Е, 1ААА, 1АА, 1А, 1АХ-1, 1ВВВ, 1ВВ, 1В, 1ВХ-1, 1СС, 1С, 1СХ-2 |
| GOST dimensions 9238-2013 | 0-VM |
| design speed, km/h | 120 |
| trolley model | 18-2145, TU 3183-182-00729244-2015 |

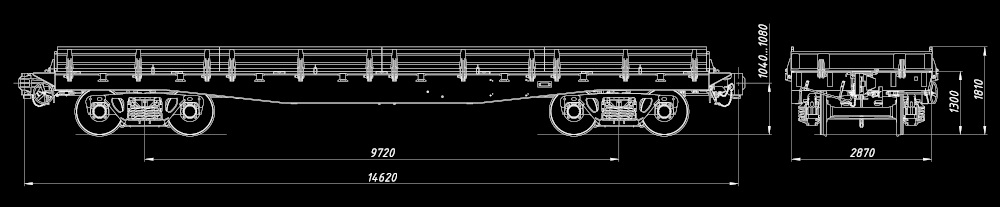

Model: 13 - 2114
The car is designed for transportation of containers, wheeled and tracked vehicles, forestry, lengthy, one-piece, bulk and other cargo.

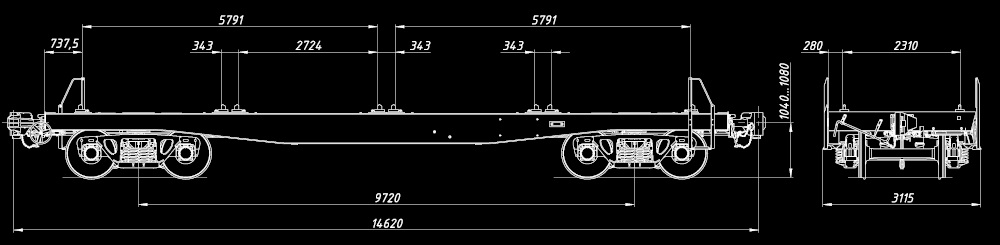

Model: 13 - 2114K
The car is designed for transportation of containers.

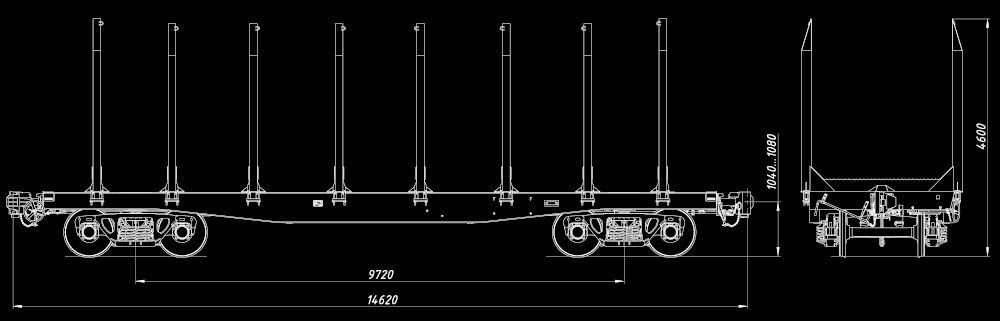

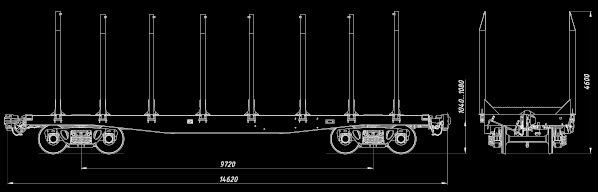

Model: 13 - 2114P
The car is designed for transportation of timber cargo that does not require protection from atmospheric precipitation.

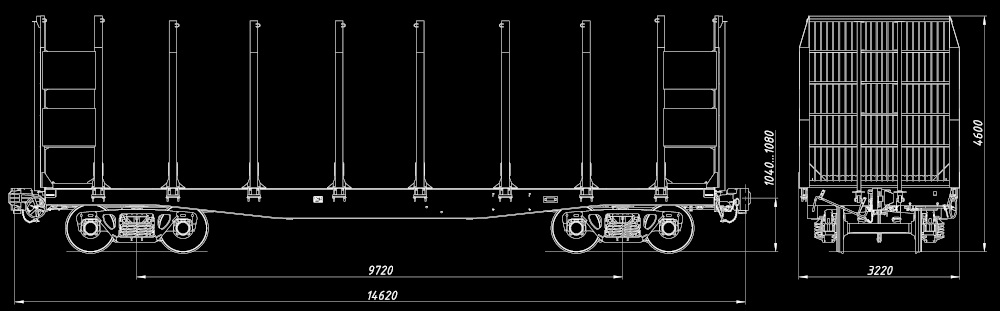

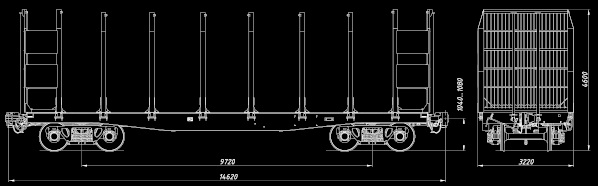

Model: 13-2114-07
The car is designed for transportation of round timber and lumber.

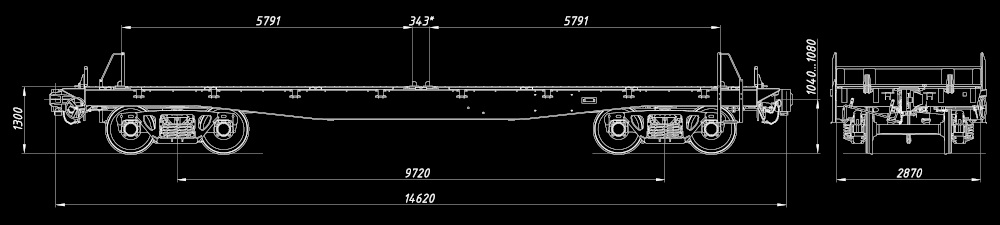

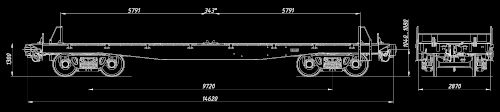

Model: 13-2114-08
The car is designed for transportation of containers, refrigerator containers, tank containers, wheeled and tracked vehicles, forestry, lengthy, one-piece, bulk and other cargo.

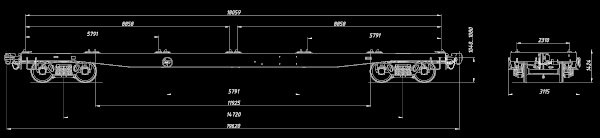

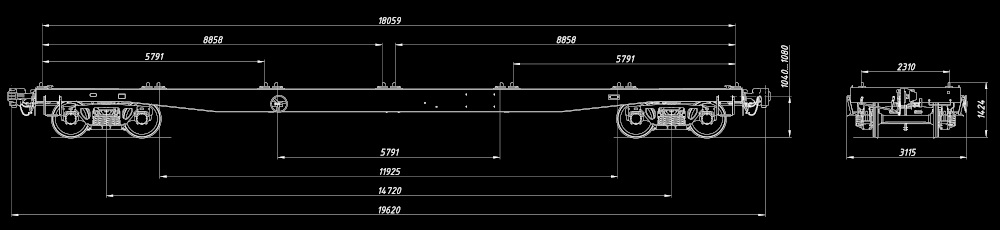

Model: 13-2116
The platform model 13-2116 is designed for transportation of large-capacity containers. The platform includes a frame, biaxial trolleys model 18-100, automatic coupling device CA-3, pneumatic automatic brake, parking brake. The platform frame consists of a center sill, side, pivot, end and transverse intermediate beams with reclining stops installed on them.

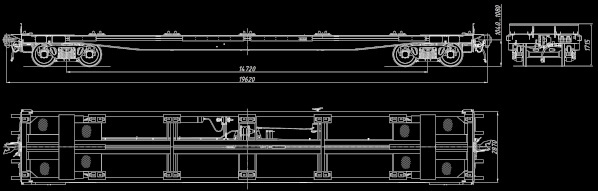

Model: 13-2116-01
The platform is designed for transportation of refrigerated large-capacity containers along the 1,510 mm gauge railroads of 1T gauge with centralized power supply from the diesel power plant car, equipped by the air brake, parking brake. The platform frame consists of a center sill, side, pivot, end and transverse intermediate beams with reclining stops installed on them.

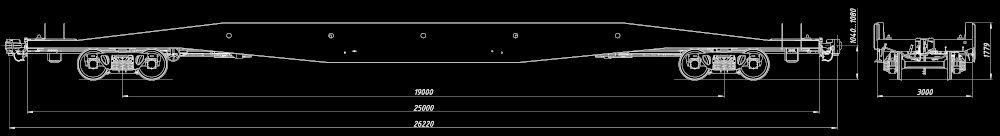

Model: 13-2118
The platform is designed for transportation of large-capacity containers.

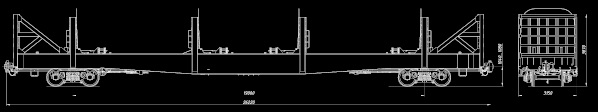

Model: 13-2118-03
The platform is designed for transportation of pipes and long sheet metal in rolls.

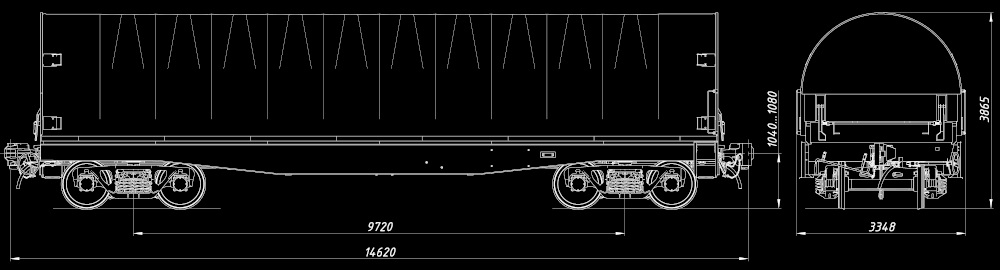

Model: 13-2134
The car is designed for transportation of steel sheet metal in rolls requiring protection from atmospheric precipitation.

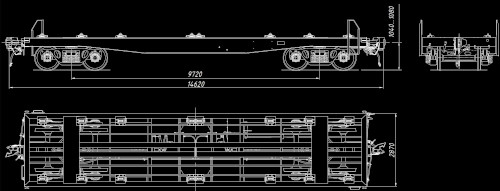

Model: 13-2114-11
The car is designed for transportation of universal large-capacity containers in accordance with GOST, P 53350 (ISO 668:1995), isothermal containers in accordance with GOST P 50697, including with independent power supply (mounted diesel generator sets) within the platform loading length, operating speed up to 120 km/h inclusive. Transportation of containers with dangerous cargo on the platform is not allowed.
