| Specifications | |
|---|---|
| load capacity, tons | 70 |
| empty weight minimum, tons | 23,0 |
| empty weight maximum, tons | 24,0 |
| number of axles, pcs.3 | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf)3 | 230,5 (23,5) |
| body volume, m3 | 83 |
| length over coupler pulling faces, mm | 13 920 |
| wheel base, mm | 8 650 |
| internal body dimensions, length, mm | 12 690 |
| internal body dimensions, height, mm | 2 250 |
| internal body dimensions, width, mm | 2 922 |
| number of unloading hatches, pcs. | 14 |
| GOST dimensions 9238-2013 | 1-T |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Specifications | |
|---|---|
| load capacity, tons | 70 |
| empty weight minimum, tons | 23,0 |
| empty weight maximum, tons | 24,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 230,5 (23,5) |
| body volume, m3 | 88 |
| length over coupler pulling faces, mm | 13 920 |
| wheel base, mm | 8 650 |
| body internal dimensions, length (in the lower part / in the upper part), mm | 12 690/12 930 |
| body internal dimensions, height (in the lower part / in the upper part), mm | 2 335 |
| body internal dimensions, width (in the lower part / in the upper part), mm | 2 922 |
| number of unloading hatches, pcs. | 14 |
| GOST dimensions 9238-2013 | 1-T |
| design speed, km/h | 120 |
| trolley model (type 2 according to GOST 9246-2013) | 18-2128 |
| Specifications | |
|---|---|
| load capacity, tons | 76 |
| empty weight minimum, tons | 23,5 |
| empty weight maximum, tons | 24,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 245 (25) |
| static linear load kN/m (tf/m) | 70,4 (7,18) |
| nominal body volume m3 | 94 |
| length over coupler pulling faces, mm | 13 920 |
| width maximum, mm | 3 194 |
| wheel base, mm | 8 650 |
| internal body dimensions, length, mm | 12 700 |
| internal body dimensions, height, mm | 2 460 |
| internal body dimensions, width, mm | 3 006 |
| height from rail level, maximum, mm | 3 713 |
| height from rail level to the coupler axle, mm | 1 040 - 1 080 |
| height from rail level to the empty car center of gravity, mm | 1 162 |
| GOST dimensions 9238 | 1-VM |
| design speed, km/h | 120 |
| trolley model (type 3 according to GOST 9246) | 18-9800 |
| Specifications | |
|---|---|
| load capacity, tons | 75 |
| empty weight minimum, tons | 24,5 |
| empty weight maximum, tons | 25,0 |
| number of axles, pcs. | 4 |
| maximum estimated static load by wheel pair on rails, kN (tf) | 245 (25) |
| static linear load kN/m (tf/m) | 70,4 (7,18) |
| nominal body volume m3 | 94 |
| length over coupler pulling faces, mm | 13 920 |
| ширина максимальная, мм | 3 194 |
| wheel base, mm | 8 650 |
| internal body dimensions, length, mm | 13 050 /12 690 |
| internal body dimensions, height, mm | 2 385 |
| internal body dimensions, width, mm | 3 014 |
| height from rail level, maximum, mm | 3 788 |
| height from rail level to the coupler axle, mm | 1 040 - 1 080 |
| height from rail level to the empty car center of gravity, mm | 1 194 |
| GOST dimensions 9238 | 1-VM |
| design speed, km/h | 120 |
| number of unloading hatches, pcs. | 14 |
| trolley model (type 2 according to GOST 9246) | 18-9800 |

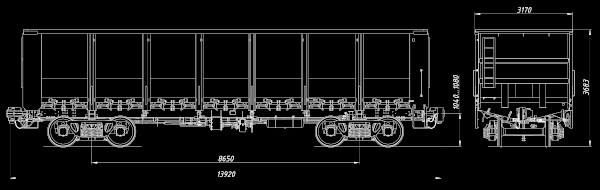

Model: 12-296-01
Gondola car with blind end walls and floor unloading hatches.
Model 12-296-01
The gondola car is designed for transportation of inert bulk, lumpy cargo that do not require protection from atmospheric precipitation.

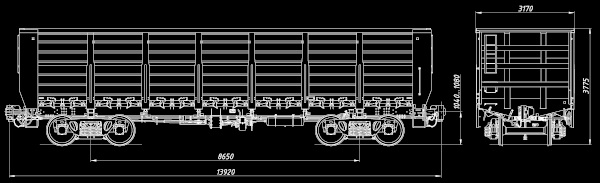

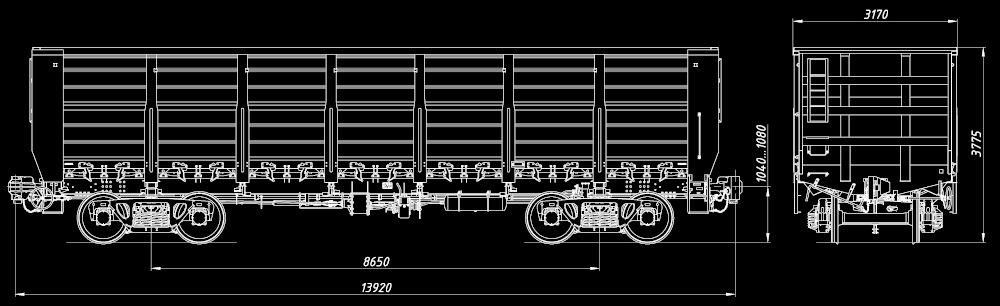

Model: 12-2153
Gondola car with blind end walls and floor unloading hatches.
Model 12-2153
The gondola car is designed for transportation of bulk non-dusty, loose (except for hot temperatures of more than 100 °С) and other cargo that do not require protection from atmospheric precipitation.

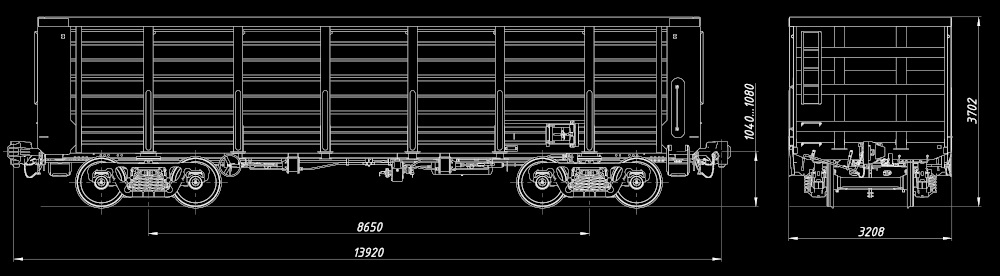

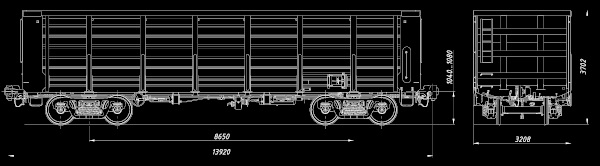

Model: 12-2156
Gondola car with a blind body.
Model 12-2156
The gondola car is designed for transportation of bulk non-dusty, loose (except for hot temperatures of more than 100 °С) and other cargo that do not require protection from atmospheric precipitation.

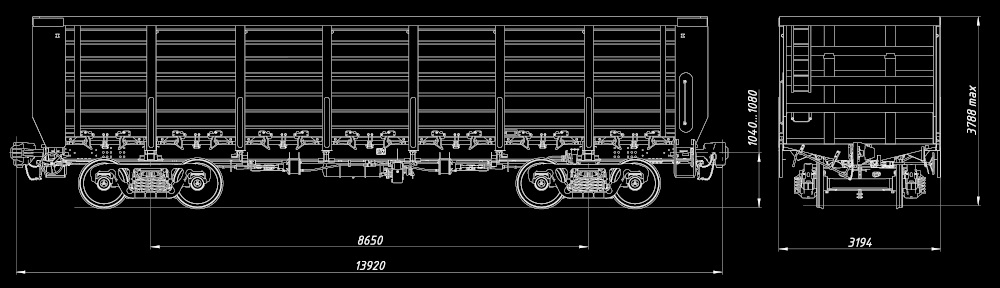

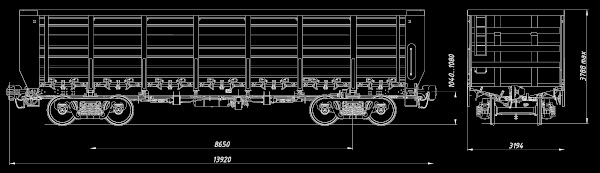

Model: 12-2159
Gondola car with blind end walls and floor unloading hatches.
Model 12-2159
The gondola car is designed for transportation of bulk non-dusty, loose (except for hot temperatures of more than 100 °С) and other cargo that do not require protection from atmospheric precipitation.
