Covered car, model: 11-280
model advantages..
Covered car, model: 11-287
model advantages..
Covered car, model: 11-2135-01
model advantages..
Covered car, model: 11-2138
model advantages..
Covered car, model: 11-2158
model advantages..
Specifications
load capacity, tons68
empty weight, tons24,7
empty weight maximum, tons26,0
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)230,5(23,5)
body volume, m3, not less than138
length over coupler pulling faces, mm16 970
floor area, m243,5
wheel base, mm12 240
internal body dimensions, side wall height, mm2 860
internal body dimensions, length, mm15 724
internal body dimensions, width, mm2 764
doorway clear dimensions (width\height) mm3 802/2 334
clear dimensions, side wall hatch (width/height) mm614/365
clear dimensions, roof loading hatch (diameter) mm400
clear dimensions, flue socket (diameter) mm130
GOST dimensions 9238-20131-ВМ (0-Т)
design speed, km/h120
trolley model (type 2 according to GOST 9246-2013)18-2128
side wall hatches, pcs.4
roof loading hatches, pcs.4
Specifications
load capacity, tons16
Tare weight, not more than, tons38,5
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)128,0(13,0)
length over coupler pulling faces, mm24 260
car frame length, mm23 240
car width (maximum), mm3 392
wheel base, mm17 000
first tier opening height, mm1 820
second tier opening height, mm1 850
GOST dimensions 9238-20131-Т
design speed, km/h120
trolley model (type 2 according to GOST 9246-2013)18-2128
number of vehicles transported, pcs10
car model11-2135 with lining inside the body11-2135-01 without skin inside the body
load capacity, tons65,567
empty weight minimum, tons2826,5
empty weight maximum, tons28,527
number of axles, pcs.44
maximum estimated static load by wheel pair on rails, kN (tf)230,5(23,0)230,5(23,0)
body volume, m3160161
length over coupler pulling faces, mm18 86018 860
floor area, m248,849,3
wheel base, mm14 12014 120
internal body dimensions, side wall height, mm2 8692 869
internal body dimensions, length, mm17 66917 687
internal body dimensions, width, mm2 7002 724
doorway clear dimensions (width\height), mm4 150/2 7694 150/2 820
clear dimensions, side wall hatch (width/height) mm614/365614/365
clear dimensions, flue socket (diameter) mm130130
GOST dimensions 9238-20131-Т1-Т
design speed, km/h12014 120
trolley model (type 2 according to GOST 9246-2013)18-212814 120
side wall hatches, pcs.44
roof flue sockets, pcs.2-
Specifications
load capacity, tons72
empty weight minimum, tons27,5
empty weight maximum, tons28,0
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)245 (25)
body volume, m3161
length over coupler pulling faces, mm318 780
floor area, m249,1
wheel base, mm13 500
internal body dimensions, side wall height, mm2 934
internal body dimensions, length, mm17 608
internal body dimensions, width, mm2 740
doorway clear dimensions (width\height), mm4 150/2 820
clear dimensions, side wall hatch (width/height) mm614/365
clear dimensions, roof loading hatch (diameter) mm400
clear dimensions, flue socket (diameter) mm130
GOST dimensions 9238-20131-Т
design speed, km/h120
trolley model (type 3 according to GOST 9246-2013)18-194-1
side wall hatches, pcs.4
roof loading hatches, pcs.4
Specifications
load capacity, tons71,5
empty weight minimum, tons28,0
empty weight maximum, tons28,5
number of axles, pcs.4
maximum estimated static load by wheel pair on rails, kN (tf)245 (25)
body volume, m3161
length over coupler pulling faces, mm18 780
floor area, m249,1
wheel base, mm13 500
internal body dimensions, side wall height, mm2 934
internal body dimensions, length, mm17 608
internal body dimensions, width, mm2 740
doorway clear dimensions (width\height), mm4 150/2 820
clear dimensions, side wall hatch (width/height) mm614/365
clear dimensions, roof loading hatch (diameter) mm400
clear dimensions, flue socket (diameter) mm130
GOST dimensions 9238-20131-Т
design speed, km/h120
trolley model (type 3 according to GOST 9246-2013)18-9800
side wall hatches, pcs.4
roof loading hatches, pcs.4

Covered cars

Model: 11 - 280

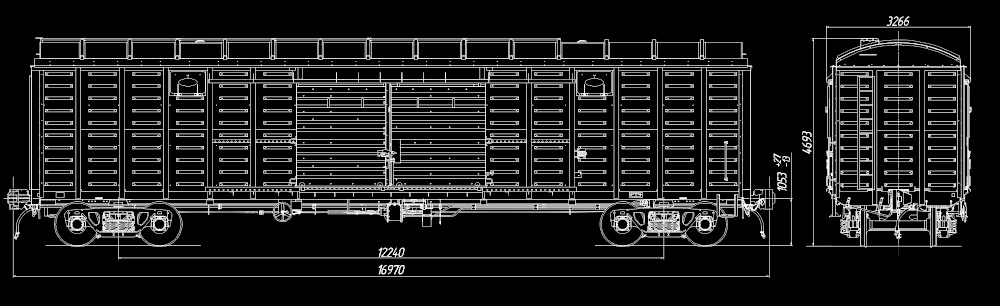

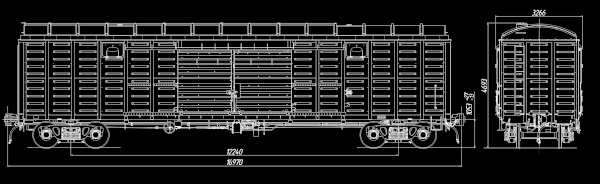

model scheme 11-280

The car is designed for transportation of unit cargo, packaged and some other types of cargo requiring protection from atmospheric precipitation.

Model: 11 - 287

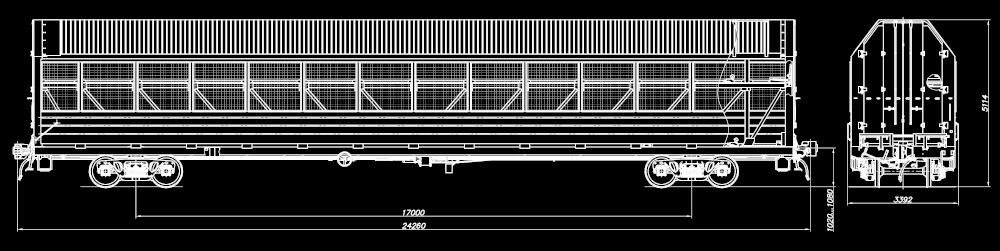

model scheme 11-287

The car is designed for transportation of vehicles.

Model: 11-2135 / 11-2135-01

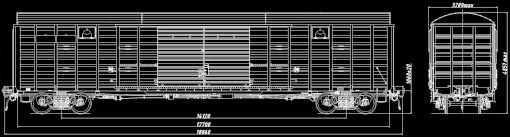

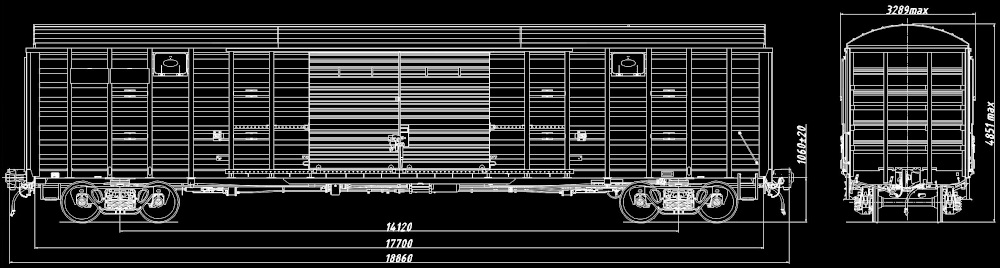

model scheme 11-2135

The car is designed for transportation of one-piece, unit cargo, packaged and bulk cargo in packaged form requiring protection against atmospheric influences. The car is not intended for transportation of unpackaged bulk cargo.

Model: 11 - 2138

model scheme 11-2138

The car is designed for transportation of one-piece, unit cargo, packaged and bulk cargo requiring protection against atmospheric influences.

Model: 11 - 2158

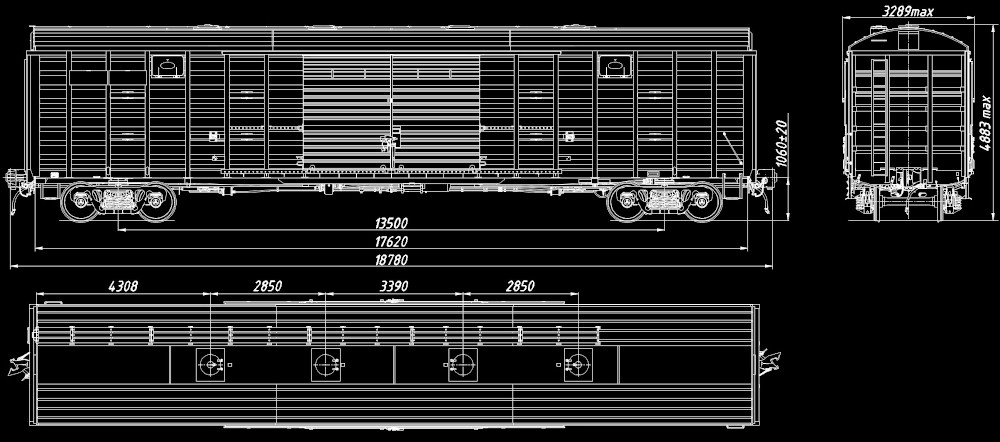

model scheme 11-2158

The car is designed for transportation of one-piece, unit cargo, packaged and bulk cargo requiring protection against atmospheric influences.
